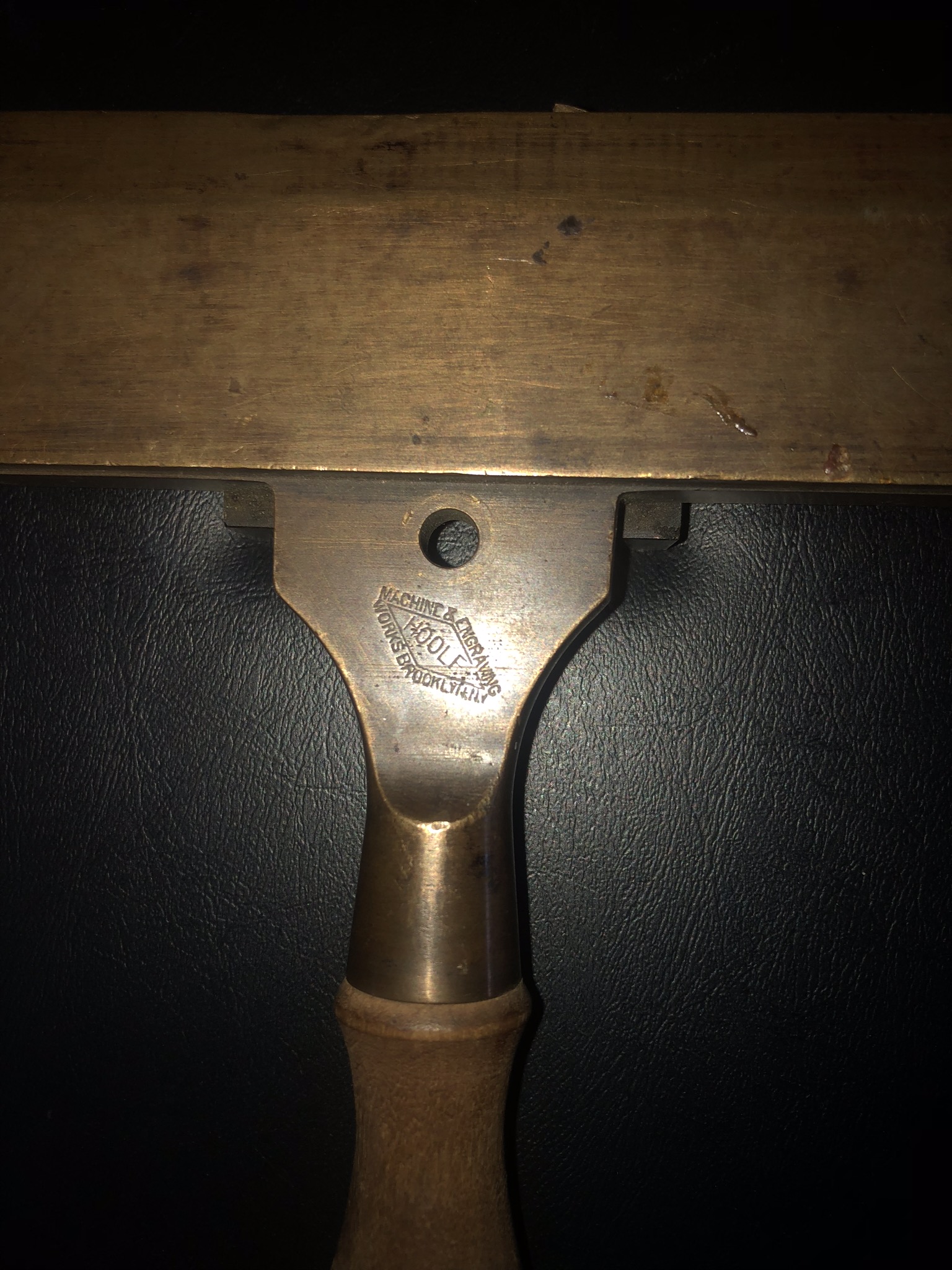

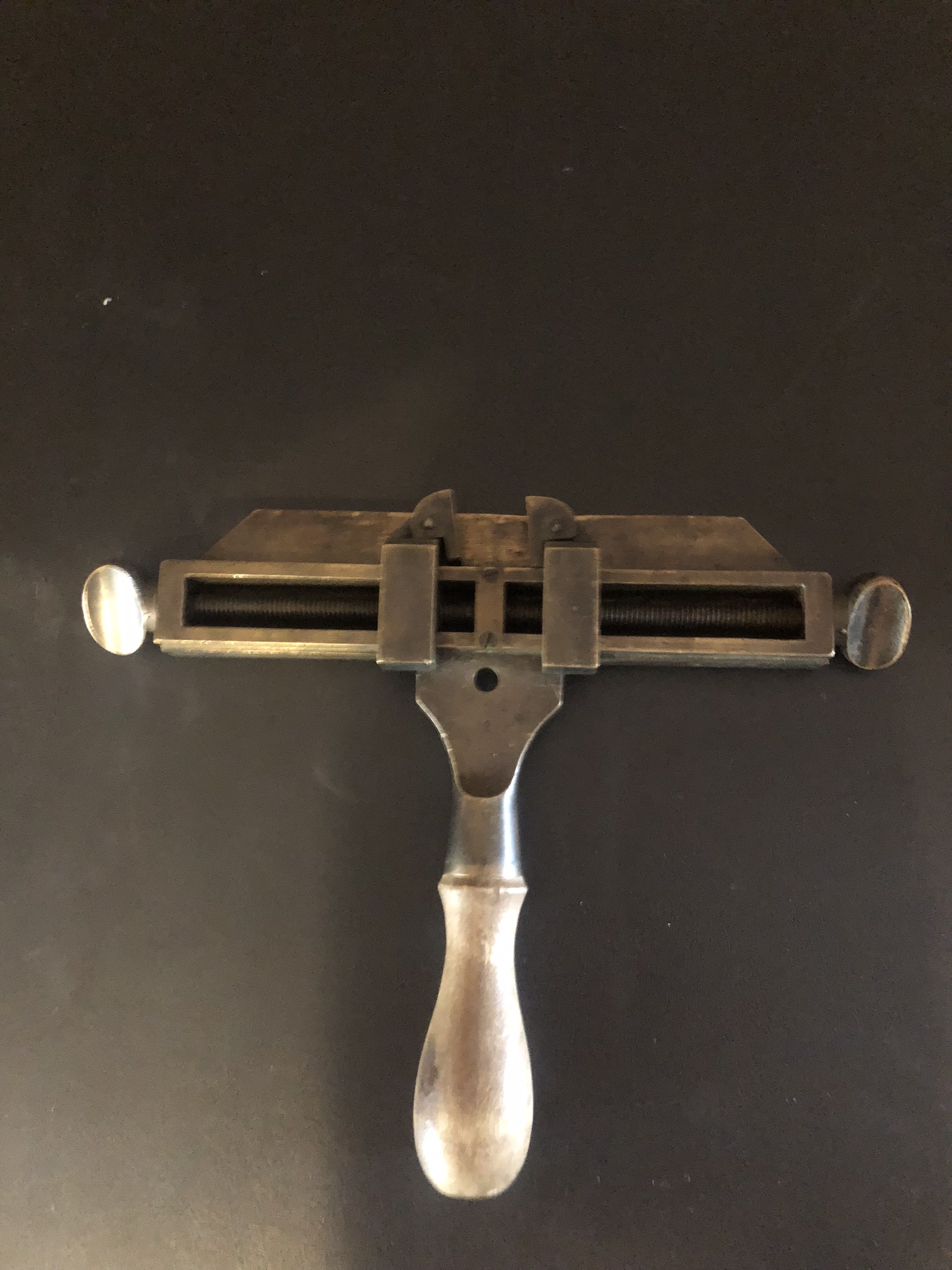

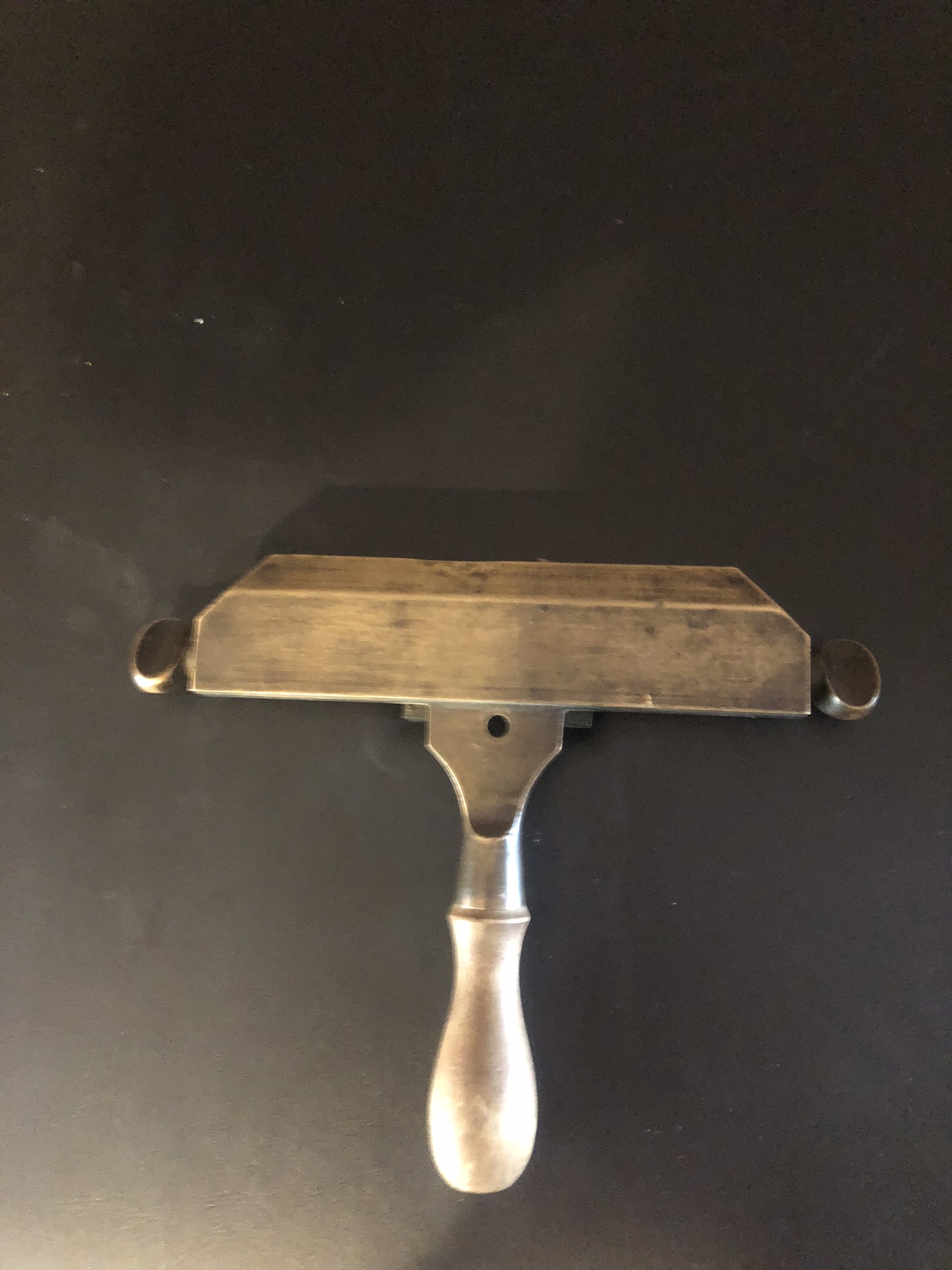

I need help identifying this tool

Discussion in 'Tools' started by Howling wolf, Aug 21, 2019.

  1. Howling wolf

    Howling wolf New Member

  2. Kronos

    Kronos Well-Known Member

    Figtree3, Fid, i need help and 3 others like this.
  3. Michael77

    Michael77 Well-Known Member

    Hoole made book binding and engraving tooling. I was not able find anymore on this. I would guess this has some collector value. They produced tooling sometime in the late 1800's. Yours appears to be in mint condition. There is a museum you can look up to fine out more and of course there maybe someone on the forum who may be quite knowledgeable wait for others to chime in.

  4. Howling wolf

    Howling wolf New Member

    Michael77 and i need help like this.
  5. Howling wolf

    Howling wolf New Member

    Thank you for information

    i need help and Michael77 like this.
  6. Michael77

    Michael77 Well-Known Member

    Figtree3 and i need help like this.
  7. Howling wolf

    Howling wolf New Member

    i need help and Michael77 like this.
  8. Jivvy

    Jivvy the research is my favorite

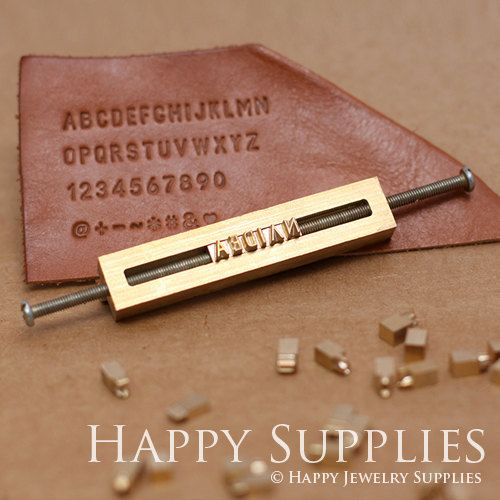

    I think an embossing tool with replaceable stamps - something like this (modern version):


    Figtree3, Fid, i need help and 2 others like this.
  9. Jivvy

    Jivvy the research is my favorite

    (sorry, did not look at the linked one... see now we already got there. :bag:)

    i need help and Michael77 like this.
  10. Howling wolf

    Howling wolf New Member

    Thank you
    Looks like it could be used to stencil the back bone of a book
    Sure would like to know how it was used

    Jivvy and i need help like this.
  11. Jivvy

    Jivvy the research is my favorite

    If I remember correctly, either @2manybooks or her partner has quite a bit of bookbinding knowledge.

    komokwa and Bakersgma like this.
  12. 2manybooks

    2manybooks Well-Known Member

    2many's partner here. Jivvy is correct. This is a 'finishing tool' called, simply enough, a 'type holder', for holding type or ornaments to decorate leather bindings. You clamp brass or hard metal (not ordinary lead) type in the tool, heat the brass parts, place gold leaf over prepared leather (see below - these days we use a manufactured foil that requires no pretreatment) and gently but firmly sort of roll the type carefully over the foil on the surface to be printed. A book is normally held spine-up in a backing press for the procedure, but it can also be done to the covers. You can also omit the gold and 'blind-tool' the lettering, as shown in Jivvy's picture. Holders like this were convenient for titling editions or multi-volume sets, where the same name or word is stamped repeatedly - for single volumes, many binders find it easier to use individual letter tools, if their hands are steady enough.

    Talas still offers a good variety of finishing tools: https://www.talasonline.com/tools-and-equipment/brassfinishing

    The process is called 'tooling' or 'gold tooling'. Embossing, stamping, and printing are different though similar processes.

    Here's a website with more info on the process: https://www.adelaide.edu.au/library/special/exhibitions/victorian-bindings/cabinet3/
    "Gold tooling differs significantly from embossing, stamping and blocking as it is done with hand bookbinding finishing tools, not in an arming press. Bookbinders use tools such as ornaments, fillets, rolls, pallets or gouges (as seen in the cabinet alongside the Library's Imperial press) to first blind-tool the cloth or leather, creating a surface impression without any gold or ink. The area to be gold-tooled is then sized with a paste wash and glair (egg-albumen and vinegar or water) and once dry, a thin layer of “grease”, often olive oil, is applied, along with a layer of gold leaf. Tooling can then begin. The heated tools reactivate the glair and grease, causing the gold leaf to adhere whilst also coagulating the glair into a tough, insoluble adhesive. Any excess gold is then brushed away and residue grease is removed, usually with French chalk."
