Featured Shaft speed indicators

Discussion in 'Tools' started by Mixdenny, Dec 6, 2018.

  1. Mixdenny

    Mixdenny Active Member

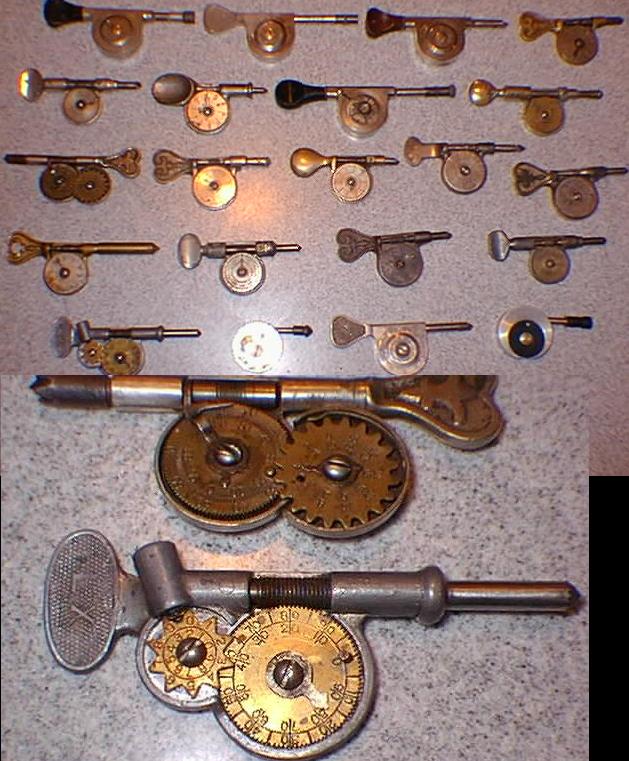

    It's been kinda quiet lately so I thought I would post a photo of some of my speed indicators. I have a lot more larger ones, most of them boxed. They can get quite complex. Dennis speed-indicators2.jpg

    Figtree3, AJefferson, Bronwen and 6 others like this.
  2. clutteredcloset49

    clutteredcloset49 Well-Known Member

    Think you will have to enlighten us.
    I have no idea what a shaft speed indicator is.

    Unless it is to indicate how fast you are falling down the mine shaft.;)
    They look interesting.

  3. Miscstuff

    Miscstuff Sometimesgetsitright

    Machinist speed indicators.
    This might explain it easier.

    Cheers
    Stephen

    Figtree3, Bronwen, mmarco102 and 2 others like this.
  4. sabre123

    sabre123 Well-Known Member

    I've seen these at estate sales and never really knew what they were. Thanks for posting.

    @springfld.arsenal would probably appreciate seeing these as well.

    Bronwen, pearlsnblume and i need help like this.
  5. Mixdenny

    Mixdenny Active Member

    Sorry for leaving you hanging! These speed indicators became helpful towards the late 1800s as better tooling and faster turning speeds required a specific rpm on the lathe to produce the best results. Water powered equipment had a variable speed and even steam engines needed the various belts shifted to vary the speeds.

    You simply hold the point against the end of a shaft and count revolutions on the wheel as you time it. Most shafts have a center point left over from the machining and this helps. Indicators may have optional ends that press over the point. These include a rubber tip for shafts with no center divot and a small calibrated rubber wheel that you press against the side of the shaft to get surface speed instead of rpm.

    One improvement was to have a small bump on the count wheel so you could count each revolution as it passed under your thumb. This helped with higher speed shafts. The count wheel revolves one turn for every 100 turns of the machinery you are measuring. Even better were the ones with a second geared wheel that counted how many times the first wheel turned.

    Fancy versions came in fitted cases and had glass dials like a dial indicator or pressure gauge. These included a rapid reset. The early versions had to be spun until they were at zero each time. I have one with 3 inputs shafts and you select the one that gives the proper speed range.

    Virtually all of these are derived from Woodman's 1876 patent that fathered them all. Starrett improved them in 1896 and are so marked. As electric motors replace other forms of power their fixed speed relegated the shaft speed indicator to the scrap bin. Starrett had 4 models, the 102, 104, 106 and 107, and still made them up to about 2000. They are featured in the National Museum of American History. Dennis

    Last edited: Dec 7, 2018
  6. clutteredcloset49

    clutteredcloset49 Well-Known Member

    Thank you.
    Not sure I understand everything you said. But I get the gist of it.

  7. savwillsell09

    savwillsell09 Active Member

    nice group ,never thought to look it up on utube,,,sold a few of these in bad condition

    i need help likes this.
  8. springfld.arsenal

    springfld.arsenal Store: http://www.springfieldarsenal.net/

    Interesting. I use a pistol-like laser version now. You put one piece of reflective tape on the spindle and the pistol thing gives a digit readout of the rpm.

    i need help likes this.
