Guess what this tool used for?

Discussion in 'Tools' started by springfld.arsenal, Mar 29, 2018.

  1. springfld.arsenal

    springfld.arsenal Store: http://www.springfieldarsenal.net/

    82E9E07F-6A39-4A3B-91DD-F05BF040B366.jpeg i know. It is a custom-made, unique tool with accessories. I don’t think anyone here will figure out purpose but some will want to try. Largest piece with two dark-colored strips, is abt a foot long. Cage-looking thing with brass rollers is about 5” long. Now go strain yer brain for a day or say, then I’ll tell ya.

    2B3E563E-8CBA-4D52-B45E-C462E270D486.jpeg 8C88BC56-7C2E-494E-9388-36699C4014D5.jpeg 0DD2CC93-B789-4489-8774-FBCACADD54C0.jpeg 34203895-6344-47ED-8ED0-806E659B2A80.jpeg EC07F7FB-CF48-420E-8486-83A99902F749.jpeg

    Last edited: Mar 29, 2018
    kyratango and judy like this.
  2. Caribou's House

    Caribou's House Well-Known Member

    I'll just say what my mother would say when she couldn't figure out what something was for.

    It's for chickens.

  3. springfld.arsenal

    springfld.arsenal Store: http://www.springfieldarsenal.net/

    Well, on the more difficult stuff I usually throw out some clues, so here’s first one on this. One could properly nickname this set “headshrinker” even though it has nothing to do with living things, either living or deceased. No connection with psychology either.

  4. Bakersgma

    Bakersgma Well-Known Member

    That's the fanciest set of Ikea tools I've ever seen! ;)

  5. springfld.arsenal

    springfld.arsenal Store: http://www.springfieldarsenal.net/

    Clue 2: The long thing with two dark strips can sharpen pencils in addition to what was built to do. The Headshrinker.

  6. springfld.arsenal

    springfld.arsenal Store: http://www.springfieldarsenal.net/

    Clue 3: Cage-like thing is technically a chuck.

  7. Bronwen

    Bronwen Well-Known Member

    Is this a clue?


    Christmasjoy likes this.
  8. springfld.arsenal

    springfld.arsenal Store: http://www.springfieldarsenal.net/

    Yes but may not help much.

    Clue 4: person who built the tool enjoyed building precise scale models of huge steam engines, etc. but this is a tool not a model.

  9. springfld.arsenal

    springfld.arsenal Store: http://www.springfieldarsenal.net/

    Clue 5: Hope no one comes un-fastened when the tool is fully identified!

  10. AJefferson

    AJefferson Well-Known Member

    To reduce the head of a bolt/screw to fit the scale of the steam engine??

    springfld.arsenal likes this.
  11. Bronwen

    Bronwen Well-Known Member

  12. springfld.arsenal

    springfld.arsenal Store: http://www.springfieldarsenal.net/

    Absolutely! We have a winnah!

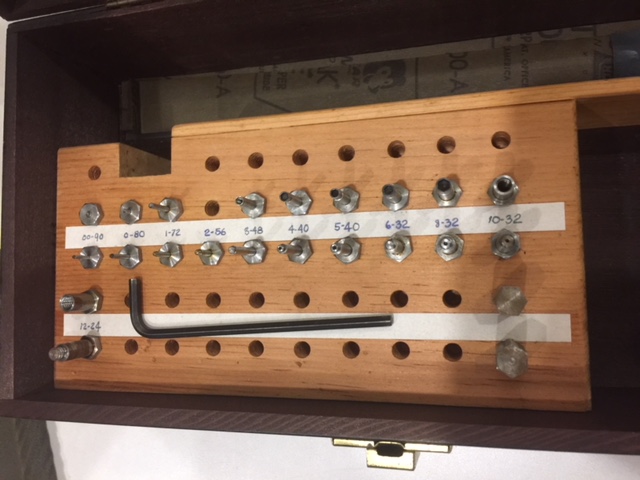

    The shiny things in the box hold the various sizes of nuts or bolts on end of the cage thing (chuck.). The parallelogram long thing and chuck are put on a very flat surface, the long thing cranked up vertically so the workpiece engages the abrasive, and the chuck moved back and forth to grind away one side of the hex head. Long thing cranked up gradually until one side of hex is at proper dimension, then chuck rotated to next side, abrasive platform cranked back down. Etc.

    Bronwen and AJefferson like this.
  13. AJefferson

    AJefferson Well-Known Member

    Ah-haaa ... I did put the puzzle together correctly! :D:D

    komokwa and Bronwen like this.
  14. Bev aka thelmasstuff

    Bev aka thelmasstuff Colored pencil artist extraordinaire ;)

    If I ever go to a trivia contest where they show weird tools, I'm sure to win after the education I'm getting here!
