Interesting vintage oilstone grinder

Discussion in 'Tools' started by springfld.arsenal, Jun 3, 2018.

  1. springfld.arsenal

    springfld.arsenal Store: http://www.springfieldarsenal.net/

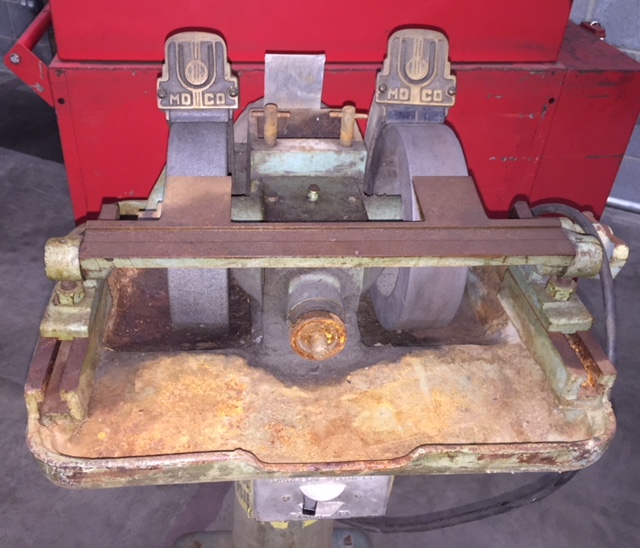

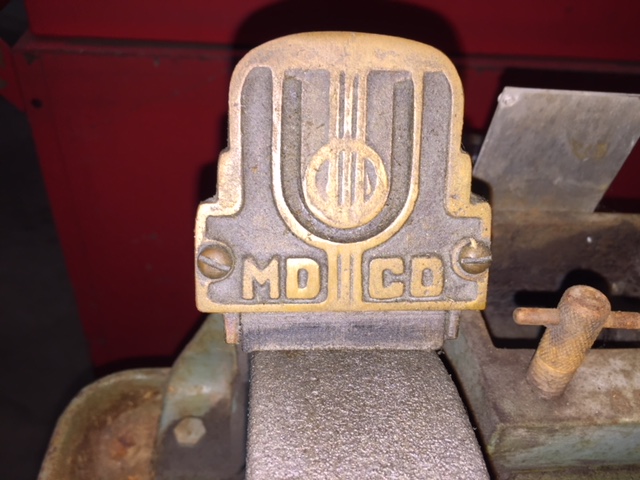

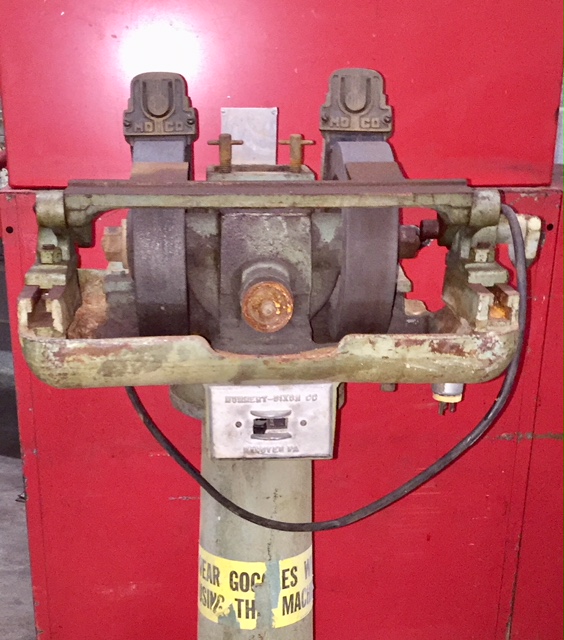

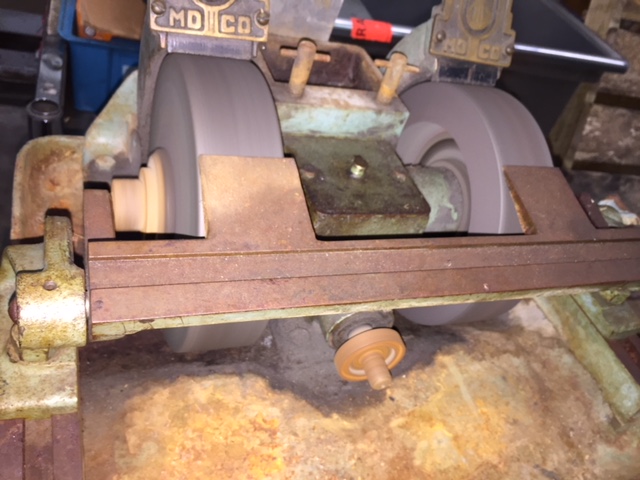

    Another item from same estate as my recent post. This is an 8” Mummert-Dixon oilstone grinder for sharpening wood chisels, plane blades, etc. It is about 4’ tall and weighs over 200 lbs. It seems to be “Plurality Sub-Jr. 425” model. It runs quietly and smoothly. The 8” stones only revolve at 300 rpm (very slow for any grinder) and a small tank of kerosene On top behind the two T-screws provides the required oil drip. Mine is missing a conical grindstone, 2” x 4”, but I think I can buy a replacement. The cone spins at full motor rpm, I think 1750 or so. I learned a lot about MD grinders from this page: http://vintagemachinery.org/mfgindex/detail.aspx?id=1147&tab=4

    827B47B3-198A-4A11-92F8-D516F5B4642A.jpeg 3D172540-7446-4264-83EC-39A2E28E25FC.jpeg





    Last edited: Jun 3, 2018
    i need help and komokwa like this.
