Featured QUESTION ON DESIGN FEATURE....

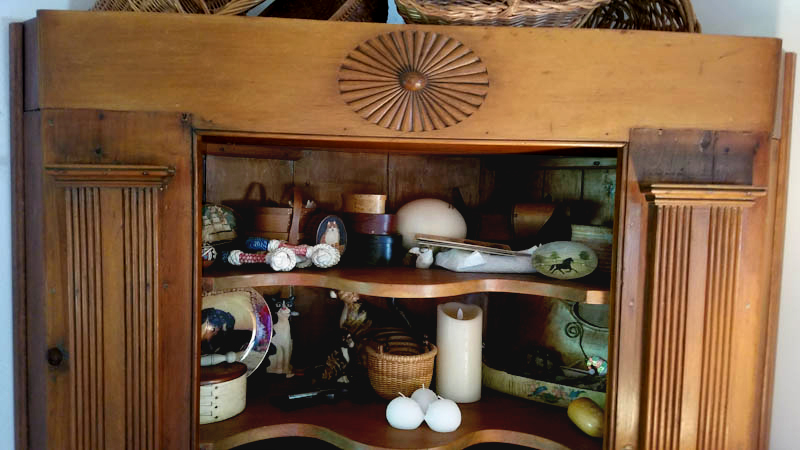

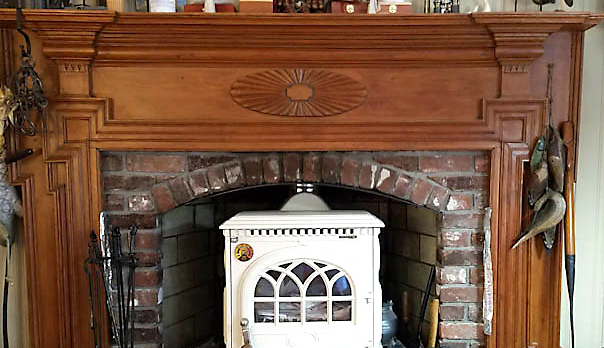

We've had these two items in our home for forever.....the mantle I refinished (it was already stripped decades ago I believe by my father and came out of an old farmhouse on Block Island) and the corner cupboard, I believe was in the 1672 home we owned on Block Island for 50 years.....when it was sold.....parents said we could have what we wanted out of it.....HA!...WITHIN REASON....my big choice was the corner cupboard that was there when parents bought it with TONS of old white paint that, again, my Dad, took off! ONLY recently did I happen to notice that BOTH pieces have the almost same center design carved out of & into each!!!! NOTHING like being blind!!!! But I'm drawing a blank on what you call it!!!! @James Conrad or whoever, please, the name of that central design???? I don't think it's a 'sunburst'.......ooops.....you DO need the pictures.....



Not for sure but, I would call it "Fan" carved, popular in the late Colonial & Federal periods.
Although similar, I don't think they are the same, one looks carved into the wood on cupboard and the mantle carving looks applied.
Same style really, just different techniques.

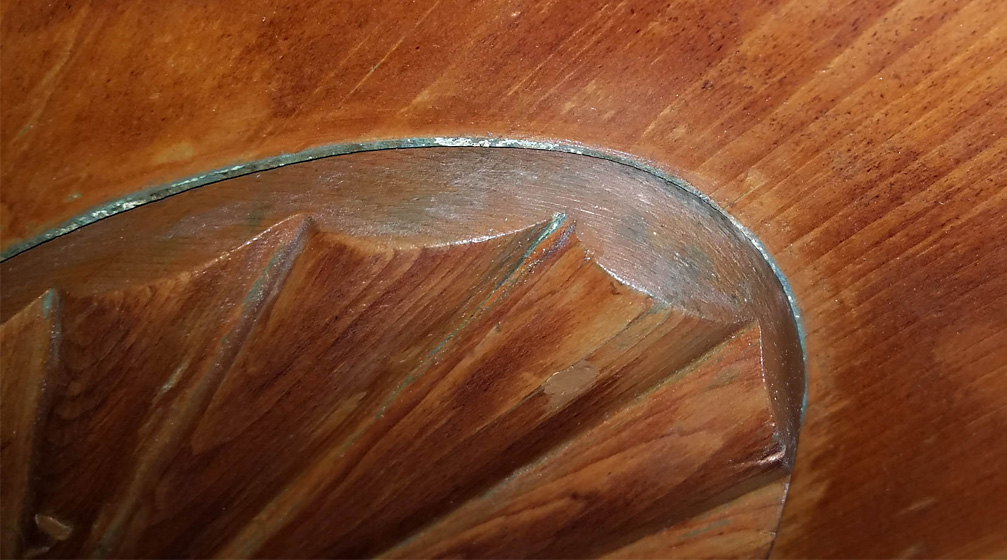

Looks like an innie on the mantel & an outie on the cupboard.



HMMMMM, @James Conrad, guess that's why you get paid the BIG bucks!!!!! I stained & finished it, but think I never looked THAT close!!!! (Also never really thought about it!) Thank you!!!



Yes, applied to the mantle after being carved "off-site".



This is common in furniture depending on what is most practical. For example, the Goddard/ Townsend shop in Newport RI were/are rather famous for shell carved blockfront furniture however, only the center concave shell is carved into the drawer front, the 2 outer convex shells are carved off-site and then applied to the drawer front. If this makes any sense!

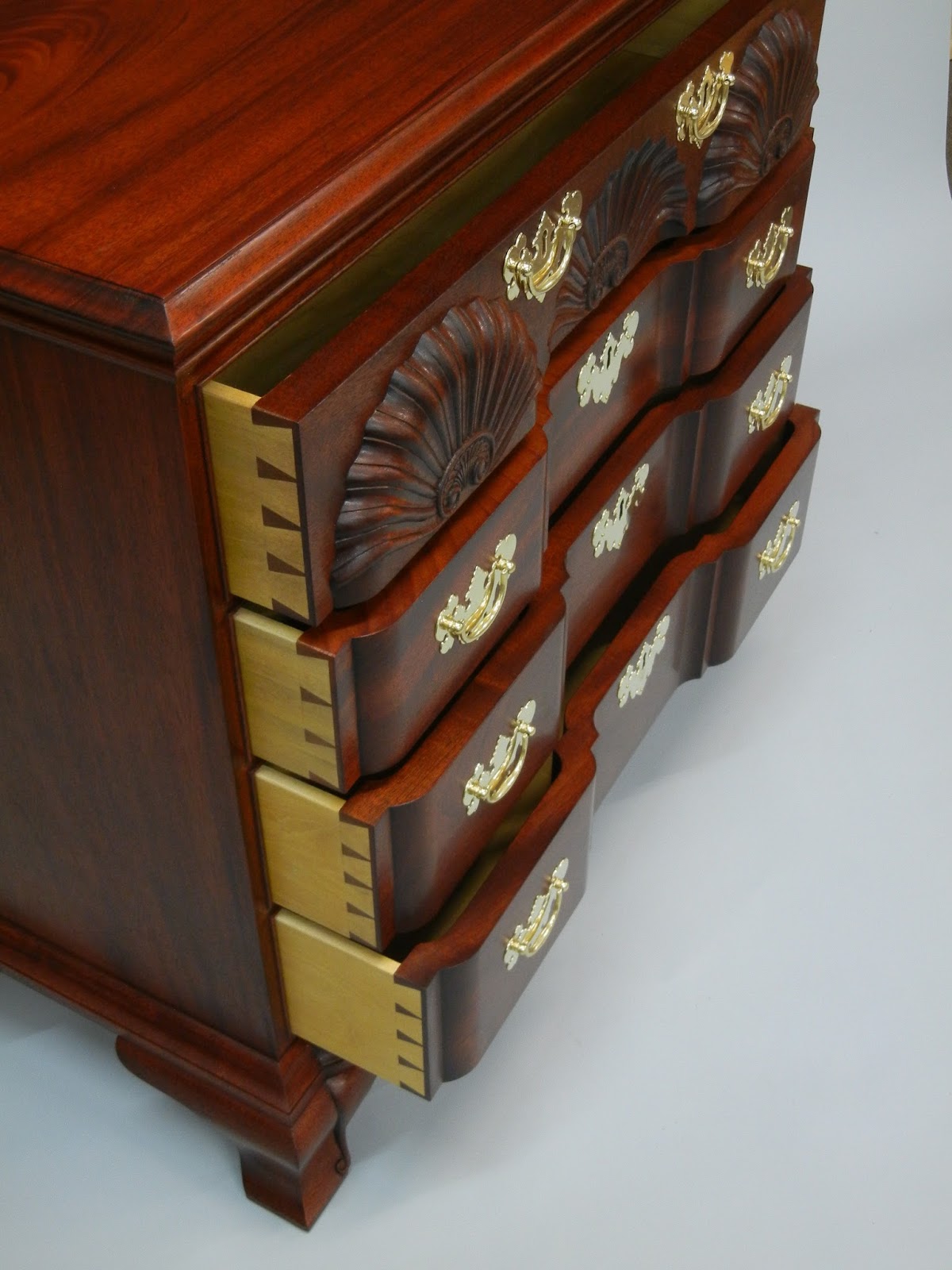

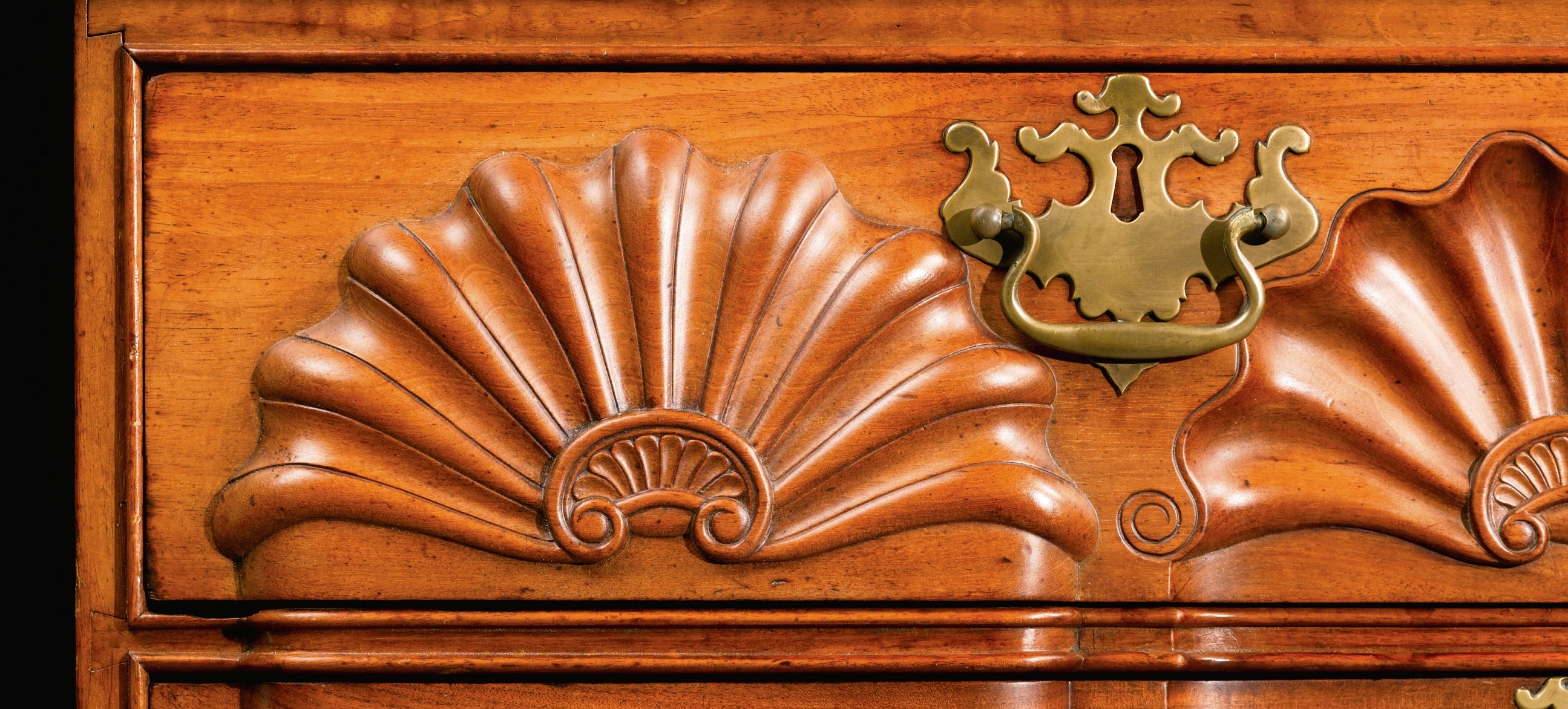

Detail of applied shell
Click to enlarge



Beautifully done!!!!!!!!!!!!!!!!!!!!! Thanks!!!! What about the drawers themselves.....where the pulls and locks are....are those sections also externally done and applied??? Asks a now enquiring mind???



A whole lot easier to create the flat front and then grind an intaglio into it than to try to make the flat front while also leaving material raised in the fan/scallop shell shape as cameos. Huge loss of good material too. How would the applied shapes be affixed to the wood behind?



Animal glue for sure, there is no structural stress on the applied carved shells as they are decorative only. Could be small brads/nails as well.



Has never examined a Goddard/Townsend piece in person, I'd like to though!
Museum people are notoriously protective about many of their pieces, I could feel many eyes on me as I pawed over a mid-17th-century court cupboard after they explained in no uncertain terms, NO FLASHLIGHTS PLEASE!



No, the "blockfronts" are carved/planed from a solid board, it takes a very thick board to do this.

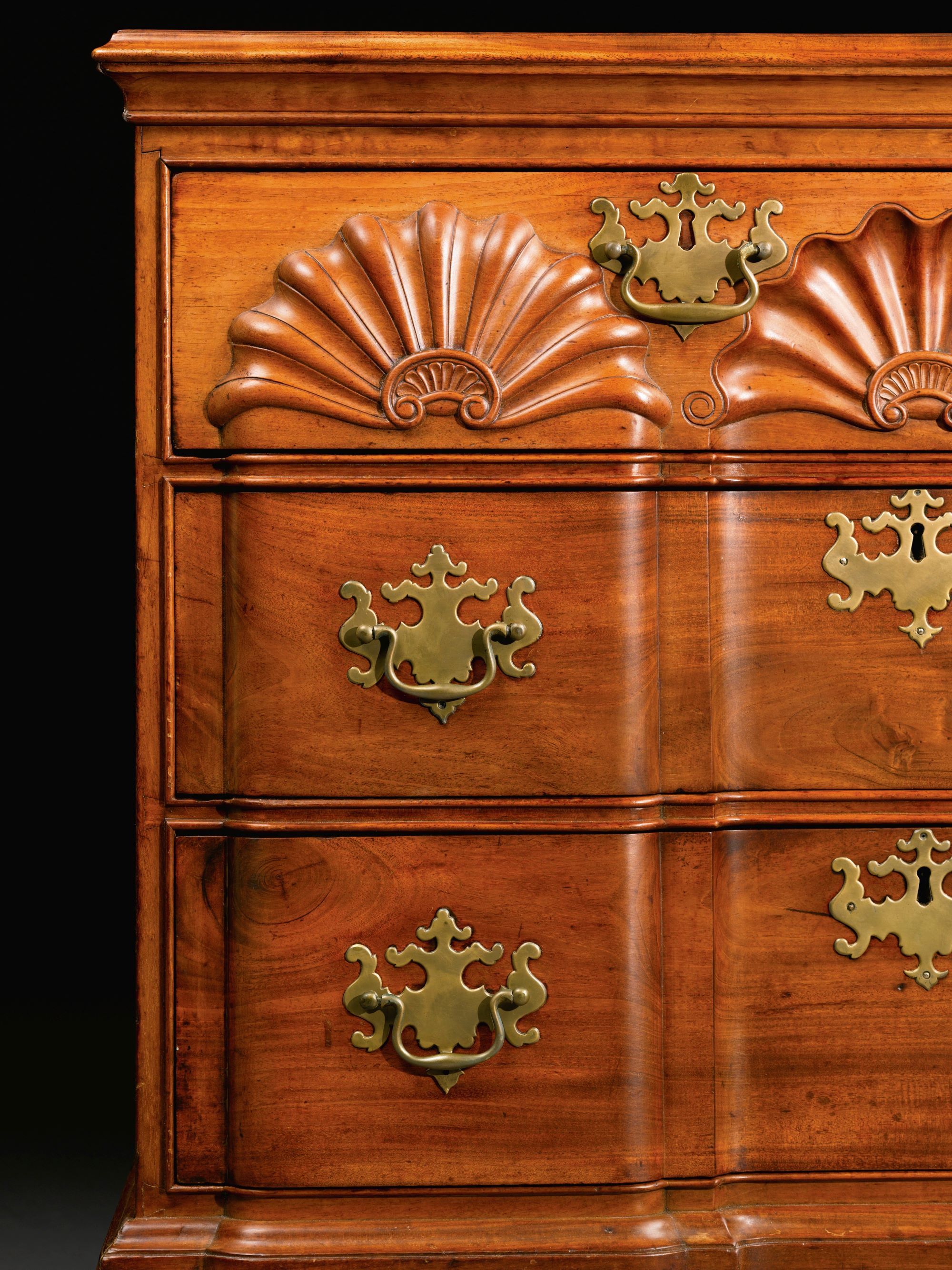

Blockfronts had been around for decades but, someone at the goddard/townsend shop got a notion to carve those "shells" at the top of those blocks and BAM! a Masterpiece was born.

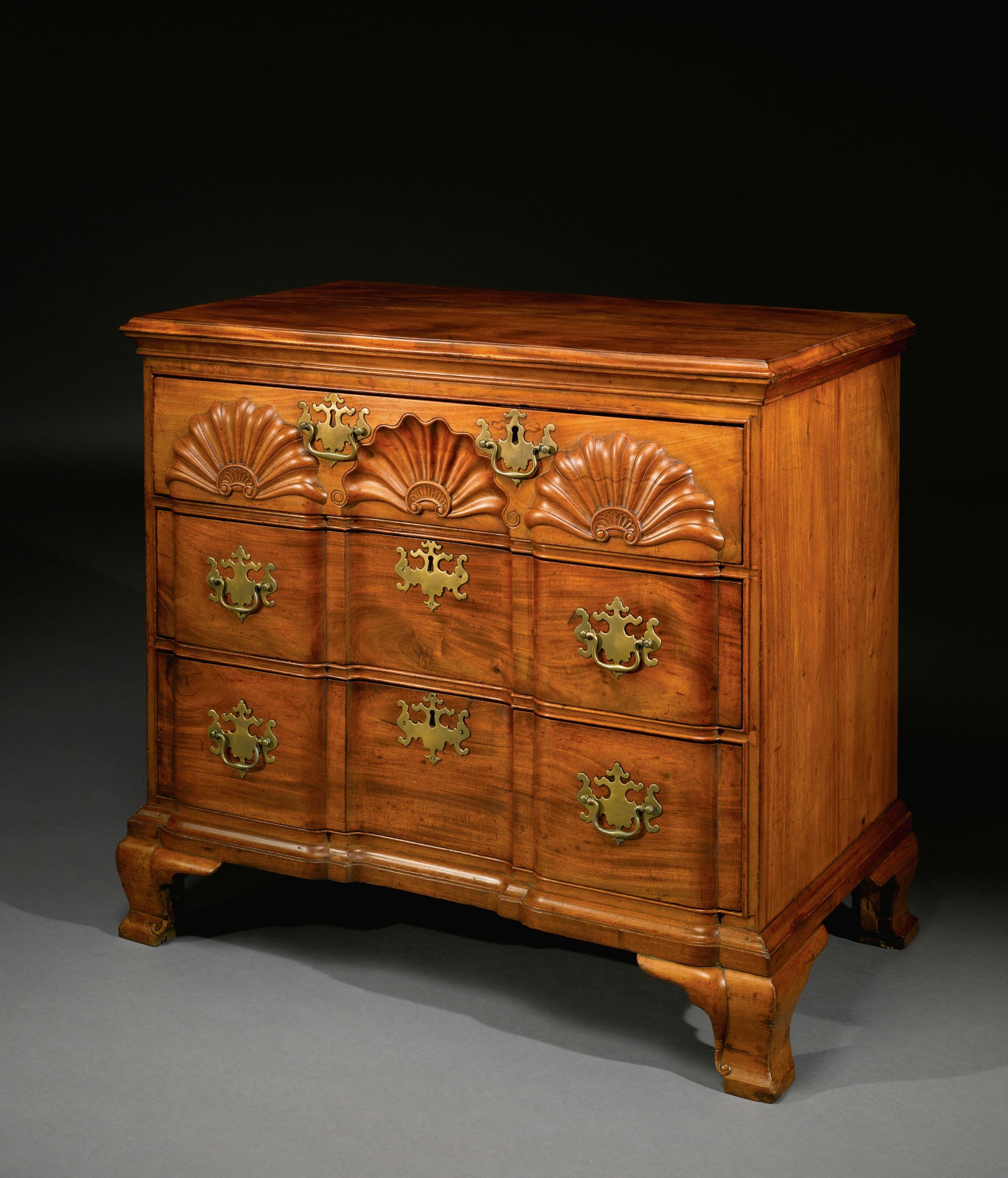

You can still purchase this dresser/bureau built exactly the way it was done in the 18th century. Here are a couple pics from Doucette and Wolf who make line by line reproductions of this famous furniture. If you have to ask, you can't afford the repro's, still, much cheaper than the millions for a "real" chest as above.
https://furnituremaker1.blogspot.com/2013/12/chippendalechest.html

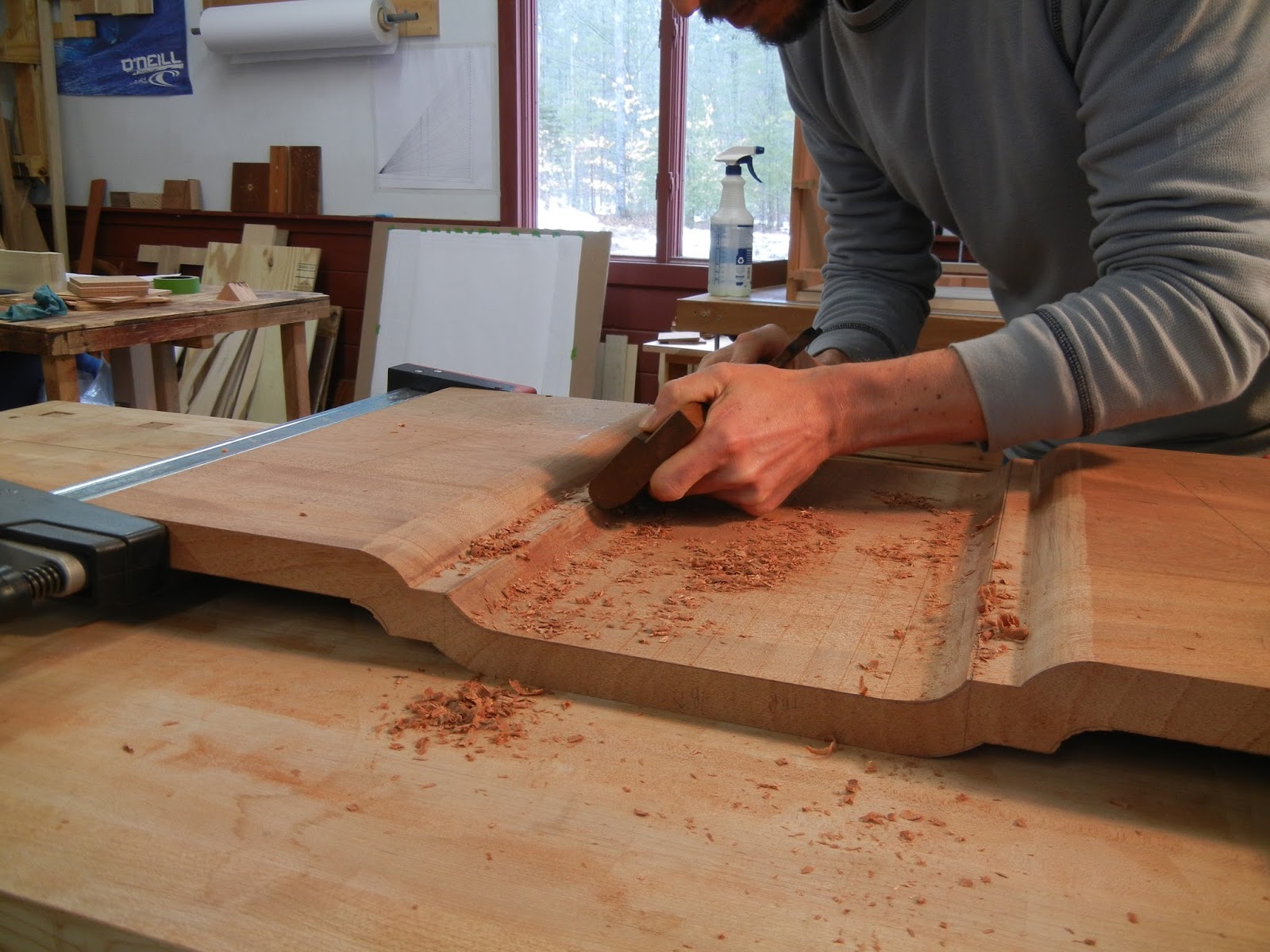

Shaping the block fronts on bottom 3 drawers

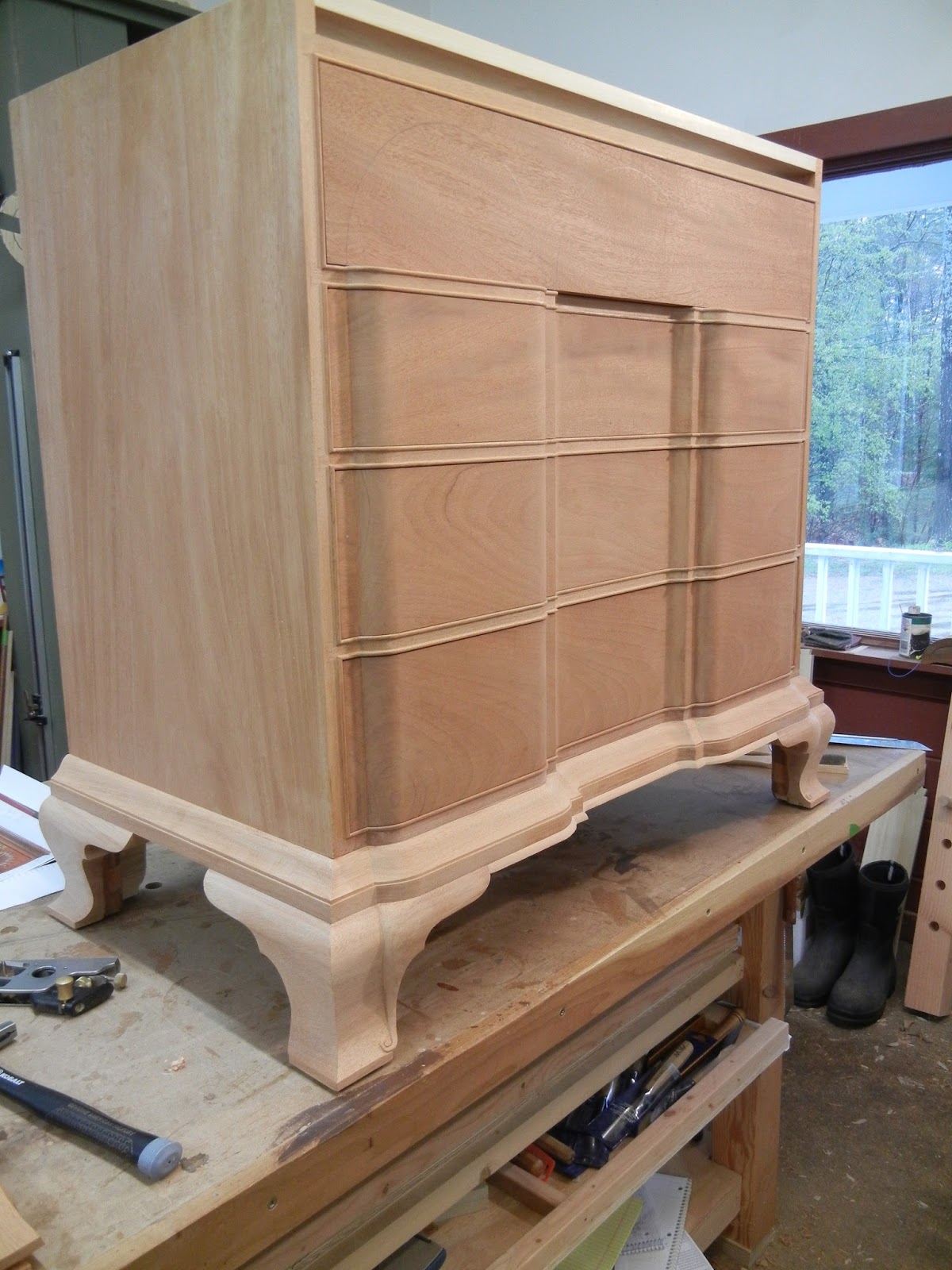

Chest and drawers assembled

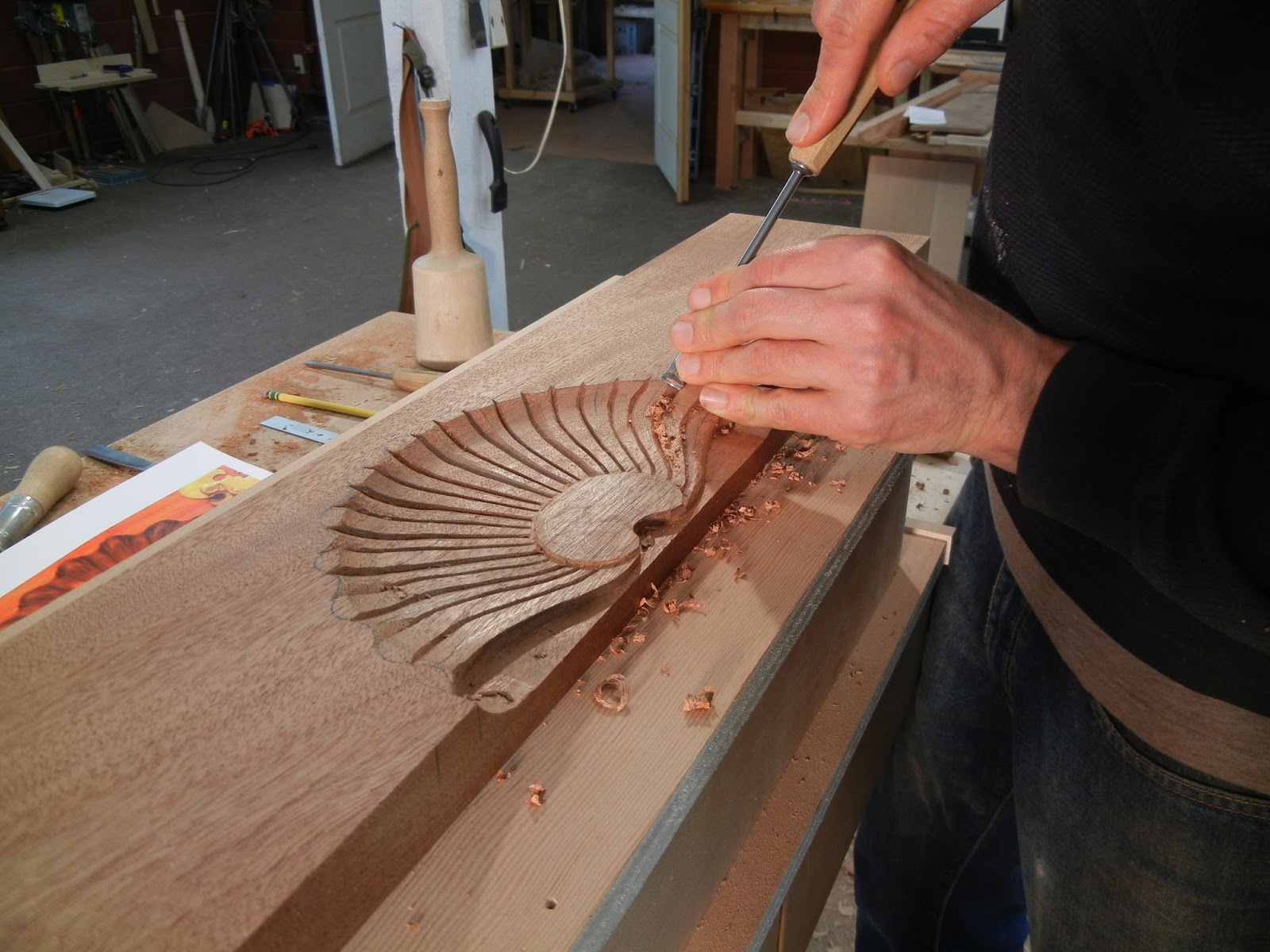

Carving the center concave shell on top drawer

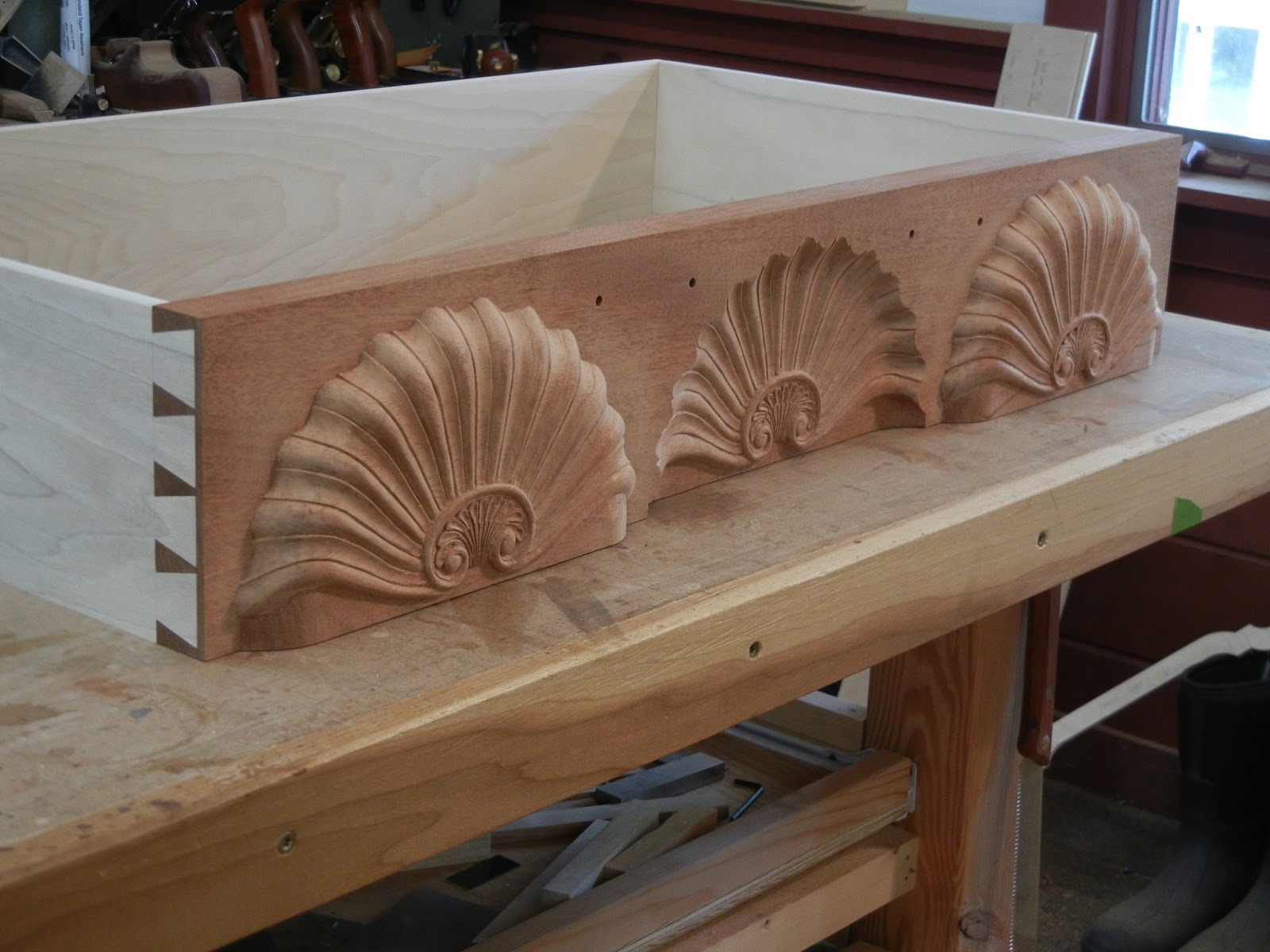

Top drawer complete with applied shells on either side

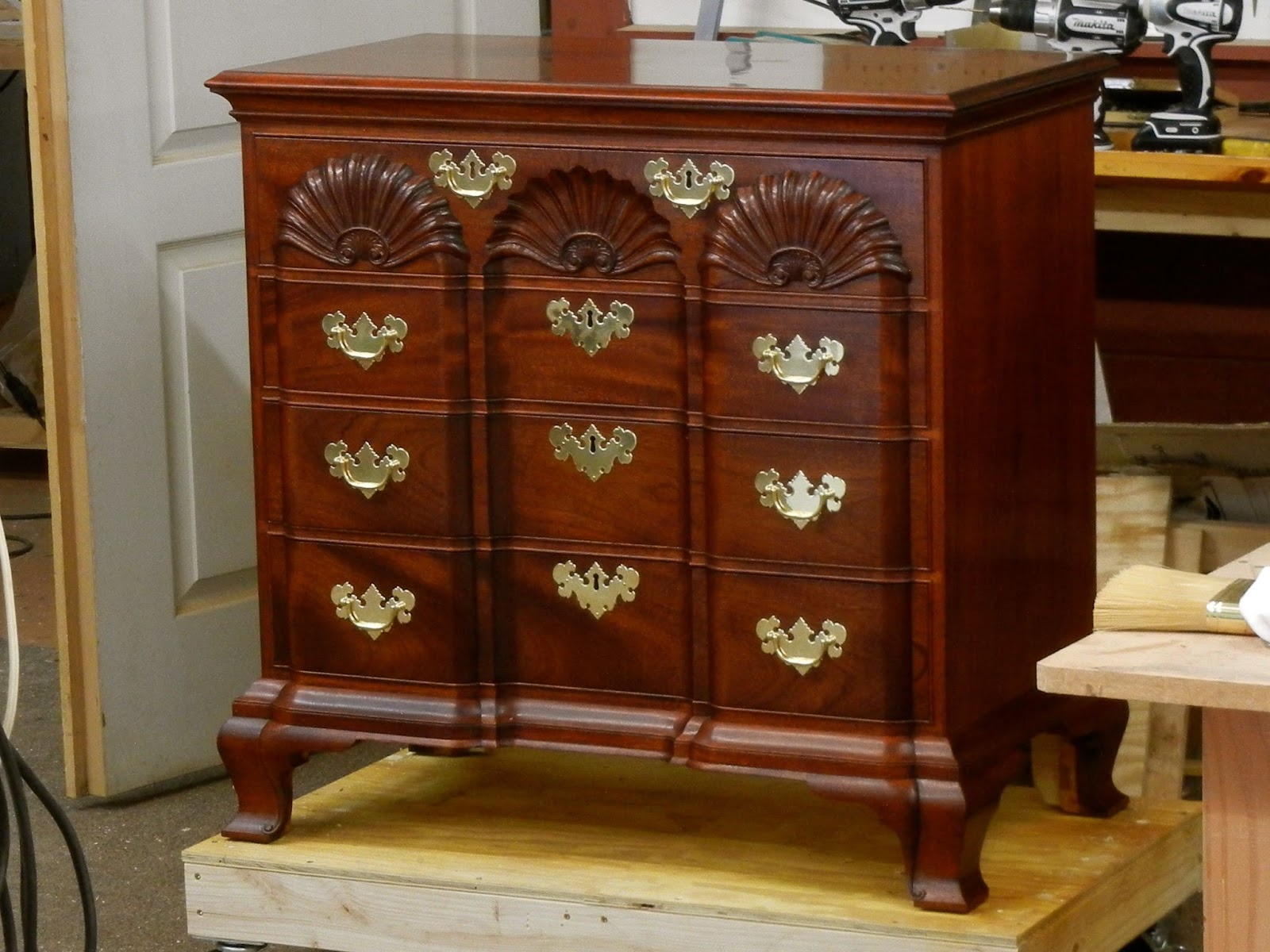

Finished Chest



Mary May, a nationally known carver based in Charleston SC, teaches carving and of course, A LOT of interest by woodworkers in learning how to carve those shells!
I would add you can "mess up" the applied carvings on either end and just start a new one but, mess up that center concave shell?
That's right kids, you JUST LOST THE ENTIRE TOP DRAWER FRONT!

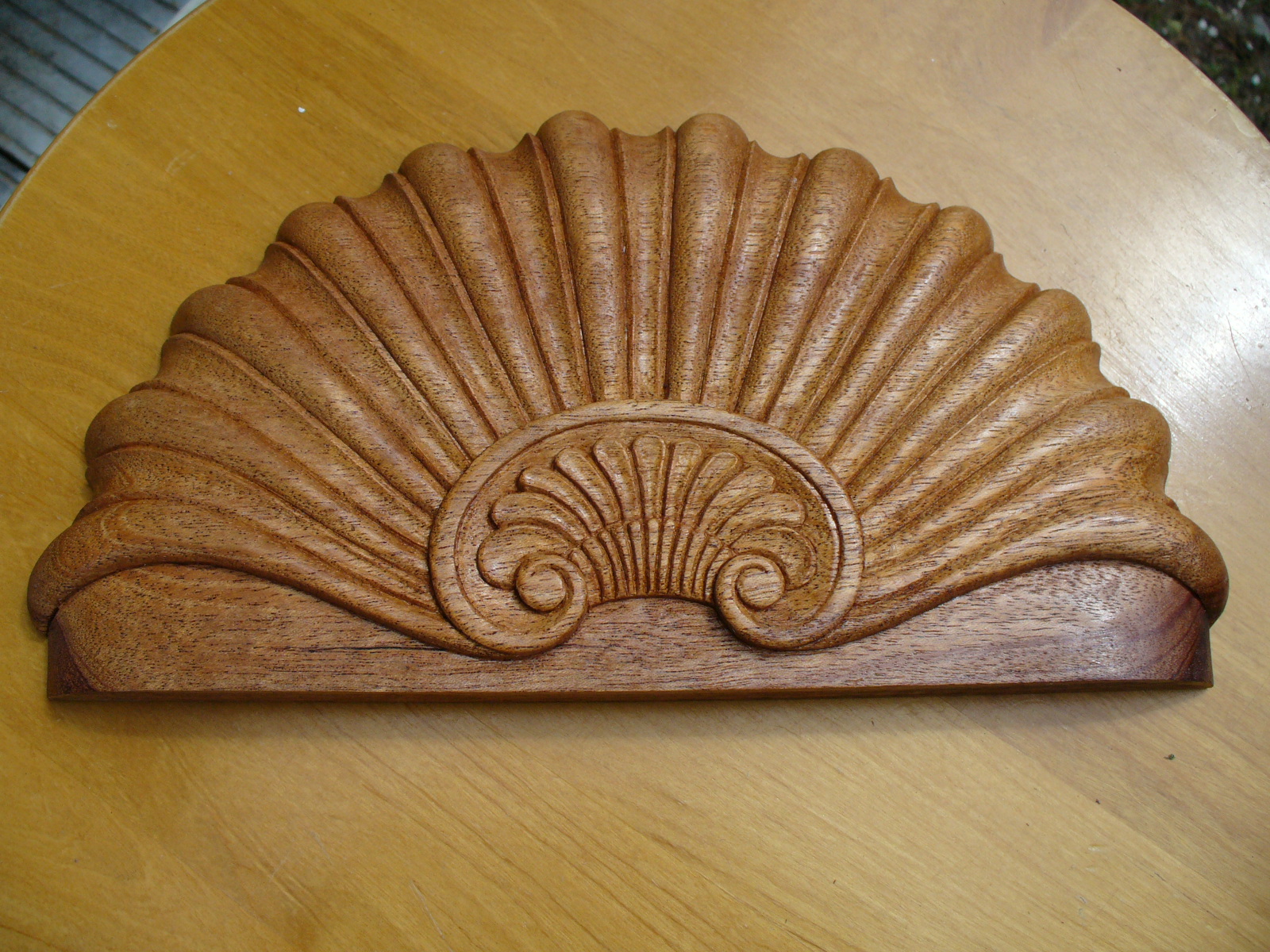

Applied Shell carved by Mary May



Wow! Beautiful!!
