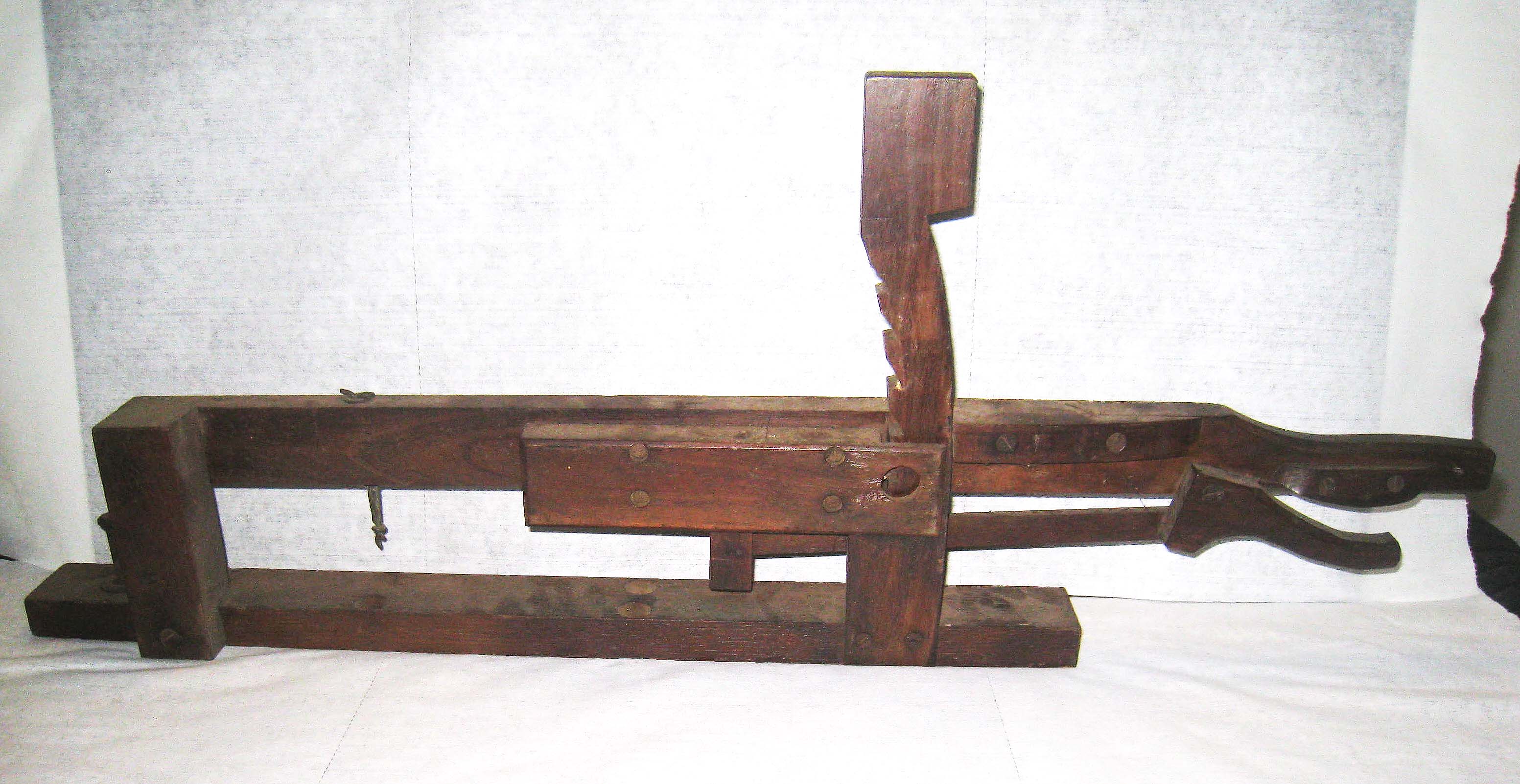

Wooden Contraption

Discussion in 'Tools' started by lptools, Mar 23, 2023.

  1. komokwa

    komokwa The Truth is out there...!

    ya, that lever is so nice ......y'just wanna pull it !!:playful::playful::hungry::hungry::hungry:
    MKLH likes this.
  2. MKLH

    MKLH Be the change...

    I so truly do !! :woot::woot::woot:
    komokwa likes this.
  3. Aquitaine

    Aquitaine Is What It IS! But NEVER BORED!

    @lptools, The end whole image in your latest images:

    komokwa likes this.
  4. Lark

    Lark Well-Known Member

    All the fence stretchers I have seen are all metal. Wood would not hold up to the kind of tension.
  5. Lark

    Lark Well-Known Member

    I am now more inclined to go with a press. That is the angle on my tortilla press. Flat boards may have been used. The notches allowed for continuing change of pressure over time. As in something drying out.
  6. verybrad

    verybrad Well-Known Member

    Only thing I can add is the type of wood suggests Asian in origin.
  7. 2manybooks

    2manybooks Well-Known Member

    What is the wire bit on the left, coming through the main arm? Looks twisted, sort of like a drill bit/gimlet.
  8. tie.dye.cat

    tie.dye.cat Well-Known Member

    komokwa likes this.
  9. komokwa

    komokwa The Truth is out there...!

    ;).....no worries.......I'm just goofin around !!! :kiss::kiss:
    tie.dye.cat likes this.
  10. lptools

    lptools Member

    It's a piece of chain, was most likely longer at one time and passed through one of the holes in the bottom rail. So, my thinking is the handle raised and lowered the chain, or, whatever was attached to it.
  11. lptools

    lptools Member

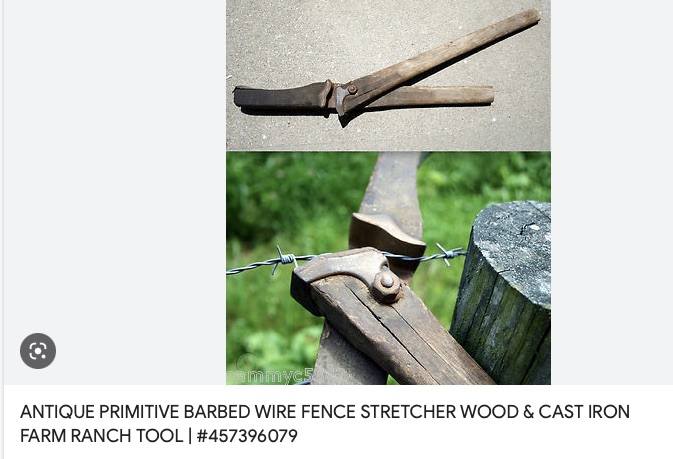

    There are numerous versions of wood/metal fence stretchers

    Attached Files:

  12. lptools

    lptools Member

    The more that I look at it, it seems that the mechanical advantage would be in a lifting mode, judging by the angle of the notches.
    komokwa likes this.
  13. lptools

    lptools Member

    I don't think it is Asian in origin, the hardware is slotted flat head wood screws.
  14. Lark

    Lark Well-Known Member

    I guess you are right . I have sold a bunch. Very common around here but I have never had a wooden one.
  15. lptools

    lptools Member

  16. komokwa

    komokwa The Truth is out there...!

    I post mine off the net or from my computer..
